Unknown, 1665 c.
Optisches Museum

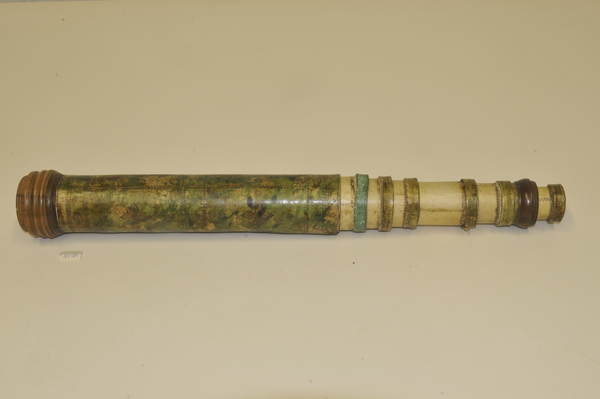

photo - whole telescope

Basic Info

Maker: Unknown

Year: 1665 c.

Year Range: -

Year Notes:

Manufacturing Location:

Signature:

Signature Notes:

Inscriptions:

No stand present.

Collection: Optisches Museum

Accession #: 03/0181

Sources:

Public Notes:

Length (open): 1420

Length (closed):

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: singlet

Optical style terrestrial

Physical style

Functional style

Materials: pasteboard, vellum, wood, glass

Optical/Lab Data

Drawtube data:

Drawtube notes:

Handwriting in main tube and Draw 4. Drawtube measurements: 310 (Main tube), 198 (draw 1), 192 (draw 2), 195 (draw 3), 186 (draw 4), 187 (draw 5), 169 (draw 6), .

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1						49.10	28.30

Eyepieces

Notes:
